The Synergy of Sound
In a traditional BWMS, the UV reactor does all the heavy lifting. If the water is murky or organisms are clumped together, UV light cannot reach every cell.
BSKY’s Ultrasonic Pre-treatment changes the equation. By applying high-frequency sound waves before the UV chamber, we “prime” the water for total disinfection. This stage acts as a biological force multiplier, making subsequent UV treatment 1.45× more effective than UV alone.
Biological Force Multiplier
Organisms arrive weakened and fully exposed—no “shading”.
Self-Cleaning Advantage
Continuous scrubbing helps keep quartz sleeves clear at full UV intensity.
The Dual-Action Mechanism
1) Ultrasonic Cavitation (The Biological Strike)
The system generates millions of microscopic vacuum bubbles that expand and violently implode.
- Cell Wall Disruption: The energy released by implosions shatters protective shells and cell walls of larger organisms.
- De-clumping: Breaks apart bacterial colonies and sediment-attached microbes, ensuring no organism can “hide” behind another at the UV stage.
- The Result: Organisms reach UV already weakened and fully exposed—supporting reliable, high-disinfection performance even in poor water quality.
2) Active Self-Cleaning (The Maintenance Edge)
UV quartz sleeves commonly foul with minerals and bio-films, blocking UV light. Ultrasonic action helps prevent this.
- Continuous Scrubbing: Ultrasonic waves create a constant “scrubbing” action on sleeve surfaces.
- Zero Manual Labor: Helps prevent scale and organic buildup—reducing need for manual cleaning and chemical CIP cycles.
- Constant Intensity: Cleaner sleeves help maintain UV intensity throughout ballasting operations.
Triple-Impact Disinfection Mechanism
Bio-Neutralization
High-frequency cavitation ruptures cell walls of invasive organisms.
Sediment Control
Vortex flow eliminates suspended solids during ballast taking.
UV Optimization
Shattered colonies allow 100% UV light penetration.
45% Higher Efficacy
Organisms arrive weakened, making disinfection 1.45× more effective than UV alone.
Zero Bio-Film
Continuous ultrasonic scrubbing keeps quartz sleeves clean without manual labor.
Eco-Compliance
100% chemical-free operation, safe for discharge in sensitive eco-zones.
By applying high-frequency sound waves before the UV chamber, we “prime” the water for total disinfection. This stage acts as a biological force multiplier, ensuring reliable performance even in poor water quality.
Why Ultrasonic is a Game-Changer
| Feature | Without Ultrasound | With BSKY Ultrasonic |
|---|---|---|
| Disinfection Efficacy | Standard | 45% higher (1.45×) |
| UV Lamp / Sleeve Fouling | High (Manual/Chemical cleaning) | Self-cleaning support (Reduced cleaning) |
| Organism Resistance | Some species survive “shading” | No hiding spots; total exposure |
| Chemical Usage | Often used for CIP | 100% Chemical-Free |
| Operational Life | Decreases as sleeves foul | Extended life for UV components |
YAF Diesel Engineering: Built to Last
Engine room environments are harsh. Our Ultrasonic transducers are engineered for long-term reliability and minimal crew burden.
- Industrial Grade: Built to withstand constant vibration and high-flow environments.
- Energy Optimized: Designed to deliver maximum cavitation with minimal electrical load on ship generators.
- Integrated Control: Fully automated and monitored by the BSKY control panel—no crew input required.
YAF Diesel Engineering: Built to Last

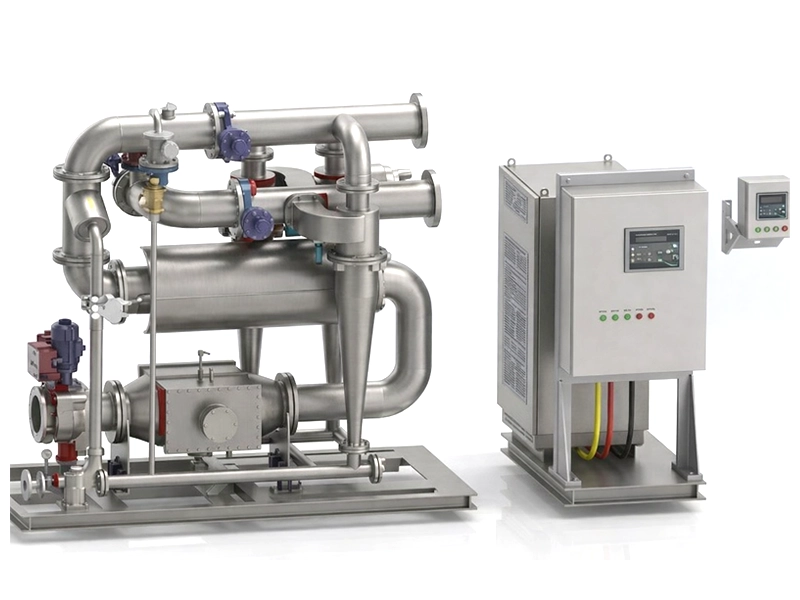

ULTRASONIC TRANSDUCER / CHAMBER MODULE
Biological Shield for Advanced Water Treatment
Pure physical cavitation process. No chemicals. No residual toxicity.
Pre-fragments microorganisms, maximizing downstream UV performance.
Reduces fouling and biofilm formation, keeping UV sleeves cleaner.
Less clogging, lower service frequency, longer system lifespan.
Improves treatment efficiency, without increasing chemical load.
Easy integration into existing BWMS configurations.
High-frequency cavitation breaks organism cell walls effectively.
Supports IMO compliance with minimal environmental impact.
Engine room environments are harsh. Our Ultrasonic transducers are engineered for long-term reliability and minimal crew burden.
- Industrial Grade: Built to withstand constant vibration and high-flow environments.
- Energy Optimized: Designed to deliver maximum cavitation with minimal electrical load.
- Integrated Control: Fully automated and monitored by the BSKY control panel.
Frequently Asked Questions (FAQ)
Is the ultrasonic sound audible to the crew in the engine room?
No. The system operates at frequencies far above the human hearing range. It is a silent, invisible process that happens entirely inside the piping.
Does it use any chemicals or generate toxic byproducts?
No. Ultrasonic treatment is a purely physical process. It creates no active substances and leaves no residual chemicals in ballast water—safe for discharge in sensitive eco-zones.
What happens if a transducer fails?
The BSKY system is modular. If one transducer requires attention, the system continues to operate and the control panel provides an instant diagnostic alert. YAF Diesel’s global service hubs stock replacement transducers for rapid dispatch.
Does this replace the UV stage?
No. It is a pre-treatment—think of it as “softening the target.” The Ultrasonic stage weakens organisms, and the UV stage delivers final genetic inactivation.
Stop fighting your filters. Start ballasting with confidence.
Request system drawings, power requirements, and retrofit planning support for your vessel and route.
